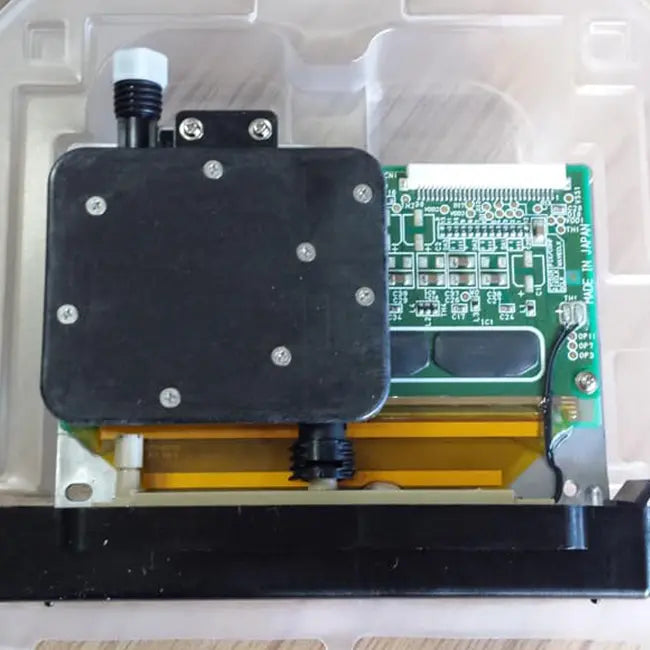

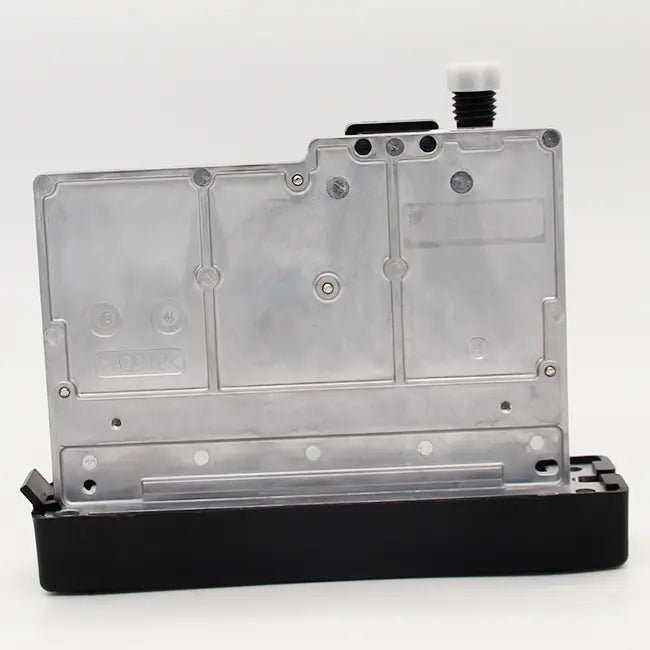

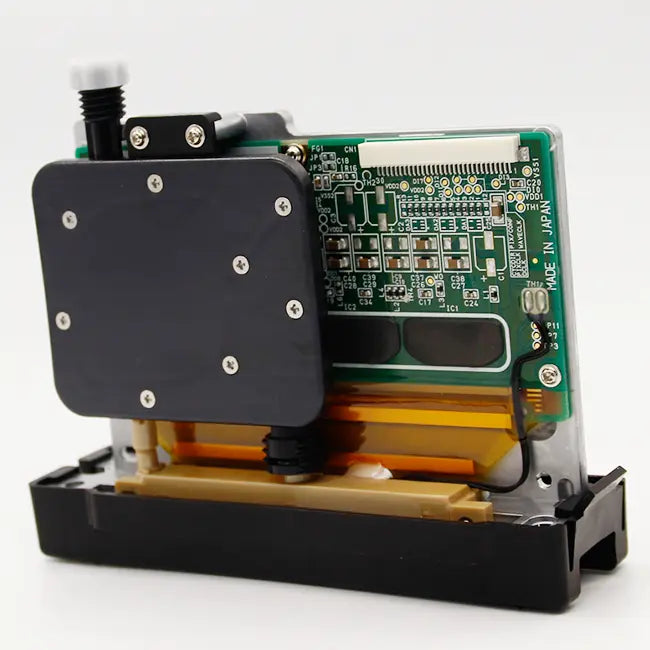

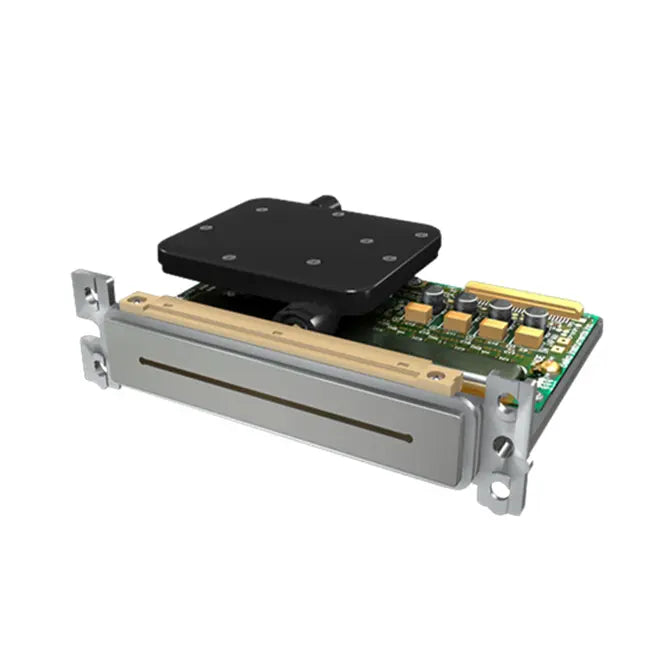

You can always contact us for any return questions at sales@printheadandpart.com.The Seiko SPT510 drop on demand piezo print head is compatible with a wide-range of grand-format digital printers, including Infiniti printers FY 3206. Fully equipped with 510 active nozzles for high-resolution (720dpi) and high-speed (35 pl) printing and steel-plate protection for a longer life, this durable printhead lasts 4-5 times longer than many common 128 print heads.
Features :
● Compatible Ink: Oil / UV / Solvent
● Number of Active Nozzles: 510
● Nozzle Pitch: 141.1[um] (Approx.1/180 [inch])
● Active Printing Width: Approx. 71.8 [mm]
● Native resolution: 180 dpi
● Jetting Frequency: 7 [kHz] (depending on ink and ink system)
● Drop Volume: 35 [pl] and 80 [pl] versions available
● Driving Interface: Parallel Interface
● Dimensions (W*H*D): 126,3 x 99,2 x 32,9 [mm]
● Dry Weight: 200 [g]
● Easy printhead Positioning: Datum points for X, Y and Z
● Print head Orientation: Downward, Horizontal and Vertical
● Ink Priming: by positive / negative pressure
● Heater: Individual heater element can be attached on the printhead
COMPATIBLE MACHINES :
Ataline
UD-1806G
UD-2506G
Azon
AG 3200
CrystalJet
6000 Series
Gongzheng
GZHS-3204DS
GZK-3206-AS
GZK-3208-AS
Icontek
Orionjet-GZE1806S
TW-3306HZ
TW-3308HZ
Infiniti
Challenger FY-3204H
Challenger FY-3206S
Challenger FY-3208G
Challenger FY-3208H
Challenger FY-3208HF
Challenger FY-5008GS
ZHONGYE
ZY-6800
ZY-5300
ZY-3400
ZY-3200
ZY-2500
ZY-2000
SK-1604
ZY-FB Series large format printers with Seiko SPT-510 / 35PL
Myjet
3208
Speedvision
SpeedJet Pro 180
SpeedJet Pro 250
SpeedJet Pro 320
VUTEk
QS2000
QS220
QS3200
QS3220
