You can always contact us for any return questions at sales@printheadandpart.com.In addition to high precision jetting enabled by MEMS technology, which achieves a nozzle placement design that avoids air flow influencing adjacent drops and affecting the image quality, and also achieves a stable ink droplet landing on media with a wide print gap and resulting in high image quality printing.
It enables ink jetting at 80kHz at 5pl binary driving or 40kHz at 5/10/18pl multi-drop driving. It also achieves the high productivity of 100m+/minute print speed at 600 dpi.

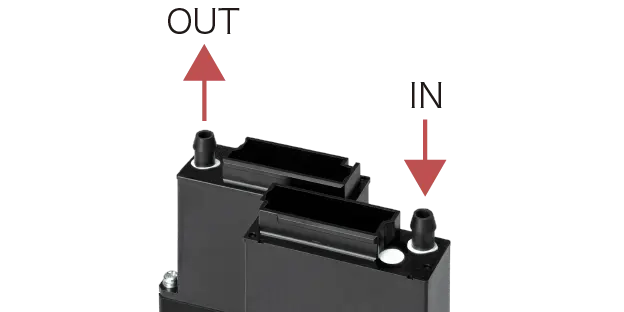

One in/out ink tube connection enables a simple ink delivery system for designing a printer.
It is compatible with all types of ink, such as Aqueous, UV, and Solvent for wide applications from Textile/Label to Corrugated.
| RICOH TH6310F | |
|---|---|
| Method | Thin-film piezoelectric transducer with bend mode |
| Print Width | 66.7mm |

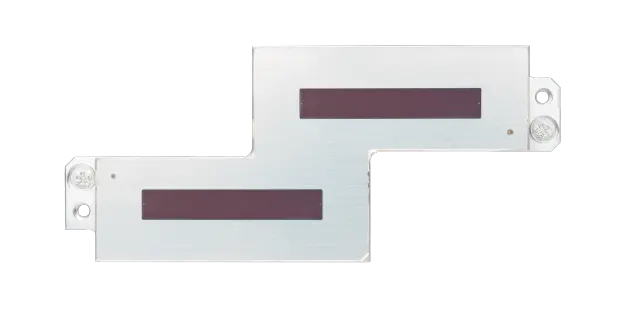

| Number of nozzles | 1,600 (8 × 100 channels × 2 Modules), staggered(Net: 1,576) |
| Nozzle Resolution | 600npi |
| Nozzle spacing (Row to row distance) | A : 0.677mm (8 pixels of 600npi) B : 20.909mm (494 pixels of 600npi) |
| Compatible ink | Aqueous, UV, Solvent, Others. |

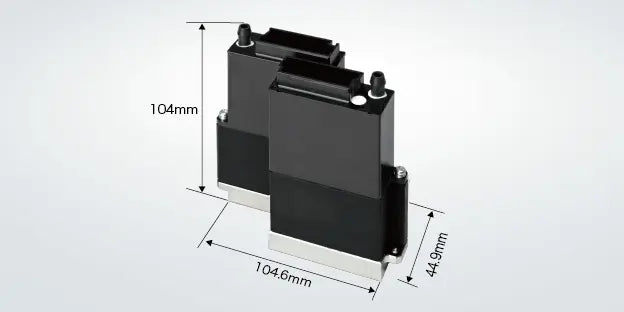

| Total printhead dimensions | W:104.6mm D:44.9mm H:104mm |
| Weight | 374g |
| Max.number of color inks | 1 color |
| Operating temperature range | 60℃ |
| Temperature control | Integrated thermistor, heater |
| Firing frequency | 80kHz (2 levels) 60kHz (3 levels) 40kHz (4 levels) |
| Grey-scale | 4 levels |
| Drop volume | 5pl (Single drop) 5~18pl (Multi drop) |
| Viscosity range | 5.5mPa・s |
| Surface tension | 31.6±5mN/m |
| Ink circulation structure | ○ |
| Separately sold parts | TH6310F dedicated cable |
