Genuine Print Head for EPSON I3200-E1 (Eco-Solvent) - C14FA71000

The Epson I3200-E1 Solvent printhead is a cost-effective 1.33-inch-wide MEMS head series providing high productivity and high image quality with 600dpi high-density resolution. This printhead is suitable for eco-solvent inks.

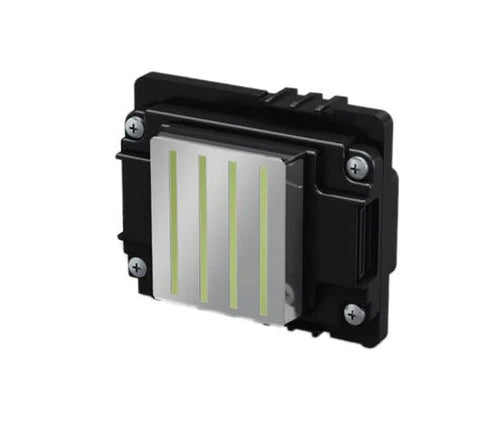

Epson I3200-E1 Solvent Printhead

The Epson I3200-E1 Solvent Printhead stands out as a revolutionary addition to the world of high-quality printing, available at All Print Heads. This printhead manifests Epson's commitment to combining cost-effectiveness with superior performance. The Epson i3200 printhead, boasting a 1.33-inch-wide MEMS head, is designed for high productivity and exceptional image quality. Its 600dpi high-density resolution ensures that every print is remarkably detailed and crisp, making it ideal for various applications, from signage to fine art reproduction. This printhead's compatibility with eco-solvent inks broadens its usability and emphasizes its environmentally friendly approach. The Epson I3200-E1 Solvent Printhead is perfect for businesses seeking a reliable and versatile printing solution.

Specifications :

• Ink Type: Eco-Solvent
• Type: PrecisionCore MicroTFP printhead

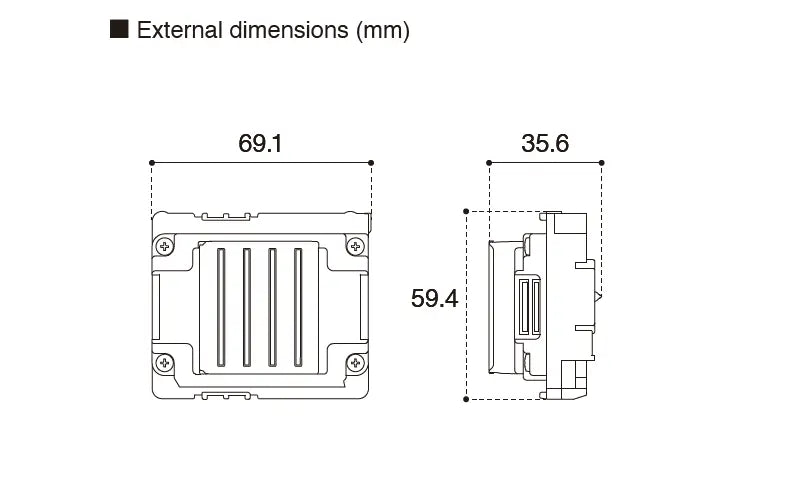

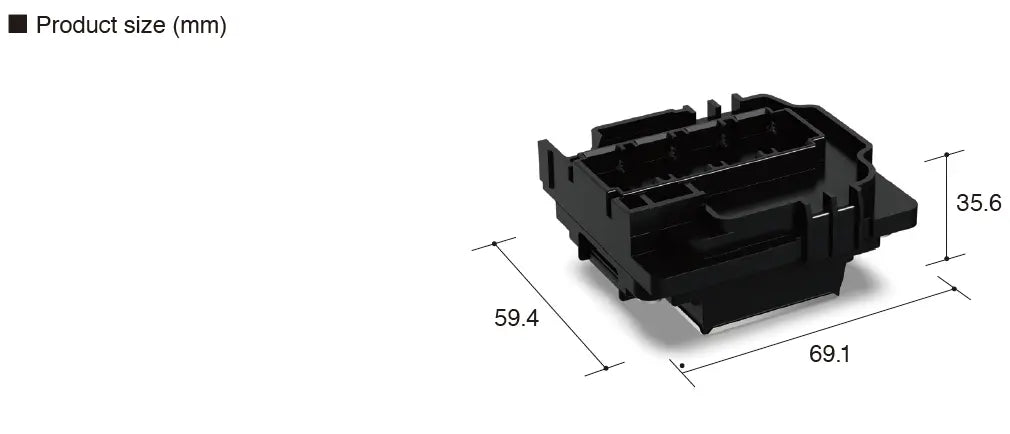

• Width x Depth x Height: 69.1 x 59.4 x 35.6 mm
• Weight: 82g
• Number of nozzles: 3200

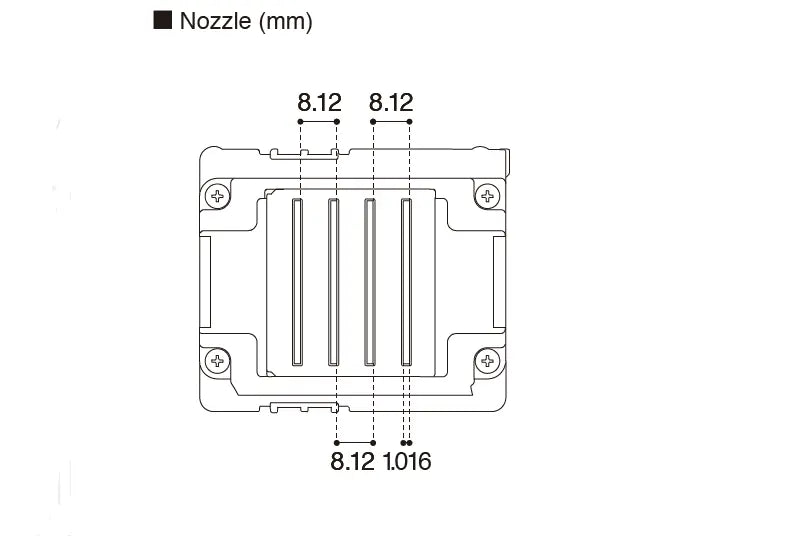

• Nozzle pitch/nozzle row: 1/300 inch
• Nozzle rows: 8 rows
• Nozzle Resolution: 300 noi/row 600 npi/2 rows
• Max. number of colours inks: 4 colours
• Effective print width: 33.8 mm (1.33 inches)
• Droplet ejection performance :
  Binary: 6 plat 43.2 kHz
  3 levels grey scale: 6.3, 12.3 pl at 21.6 kHz
  4 levels grey scale 3.8,5.5, 8.7 pl at 21.6 kHz
• Viscosity range : 3-4 mPa·s
• This printhead carries a manufacturer's warranty.
• Country of origin: Japan

Printer compatibility

Signstar BT-1804EL

Signstar EF-8i

Signstar EK-1602

Signstar EX-1802

Signstar EX-1804

Signstar EY-4i

Sinocolor SJ-1260S

Sinocolor SJ-3200S

Sinocolor SJ-740S
